High-Clearance Control Arms for 1994–1998 Dodge Ram

Description

Thuren Control Arms are a great addition to any solid axle Dodge Ram! These arms are much stronger than the OEM arms, and have more clearance for turning bigger tires.

Unlike OEM, our bushings have a good amount of deflection, and are not prone to failure with increased suspension travel.

Fitment:

If you have a 1998-2000 model year truck, we recommend checking your Control Arm bolt sizes before ordering, bolt diameter can vary by truck production date.

Checking Thread/Shank Diameter (not wrench size):

• The 1994-1998 option will have 12mm bolts for the upper arms, and 14mm bolts for the lower.
• The 1999-2002 model option will be 14mm upper bolts, and 16mm lower bolts.

If you order and receive the incorrect size arms, we are not responsible for return costs.

Details:

• Arms are 1/2″ longer length, allowing the use of 37″ tires, even with wheel offsets close to factory specs
• Works on trucks with 0″ to 3.5″ of lift
• Lower arms are built from high strength 1.5″x3/8″ wall 1026 DOM tube
• Upper arms are a solid alloy bar
• Wide flange joints, to make sure bolt torque has no problem keeping the arms locked in place, even under heavy abuse
• Bend in lower arms does not cross center to retain impact strength.

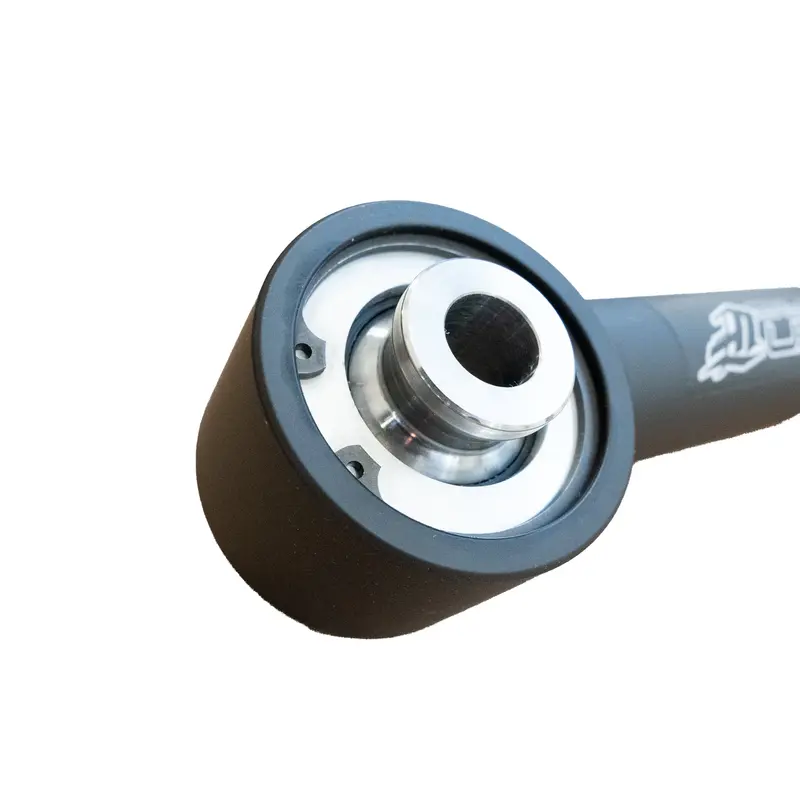

• Machined in house proprietary Self Centering joints to prevent the arms from rocking to one side and rubbing the frame/axle.
• 17-4 Stainless Steel center pivots. 17-4 Stainless is about as hard as a Grade 8 bolt, so these joints will not crush like other brand arms.
• Stainless steel center pivots prevent rust seizing of the bolts and make for easy removal.
• Joints are easy to grease and maintain, and when the day comes to rebuild. No special tools are required it is a very easy and inexpensive job.
• Arms are texture blasted before powder coating, to prevent impact chipping of the coating.
• Main joint bushings are a moderate durometer high quality PTMEG Polyurethane for great wear resistance, and great vibration control.

Included:

• Assembled L/R Upper Arms
• Assembled L/R Lower Arms

Product Installation Instructions
