Kartek Off-Road Heavy-Duty Fire Extinguisher Mount – Compatible with Flat Surfaces or Tubing

Description

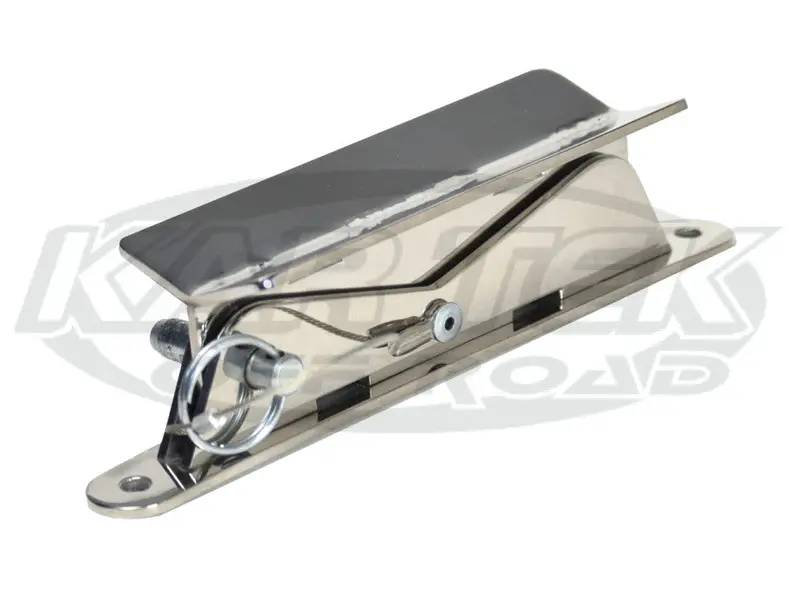

This heavy duty fire extinguisher mount is TIG welded and laser cut. It features a sturdy quick release pull pin. It will fit most standard fire extinguishers and it can be hose clamped, bolted or welded to your tube chassis or roll cage. You’ll need to purchase hose clamps to hold the fire extinguisher to this bracket.
The bottom has 4 tabs that you can smack down allowing you to hose clamp this to your chassis.
Specifications:
Bottom mounting plate holes are 8″ center to center
TIG welded
3/16″ Thick mild steel
Uses 5/16″ bolts on the bottom
Known Fire Extinguisher Diameters:
Amerex / H3R Performance 1 Pound: 2-5/8″
Amerex / H3R Performance 2.5 Pound: 3″
Amerex / H3R Performance 5 Pound: 4-1/4″
Kidde 2 Pound: 3-1/4″
